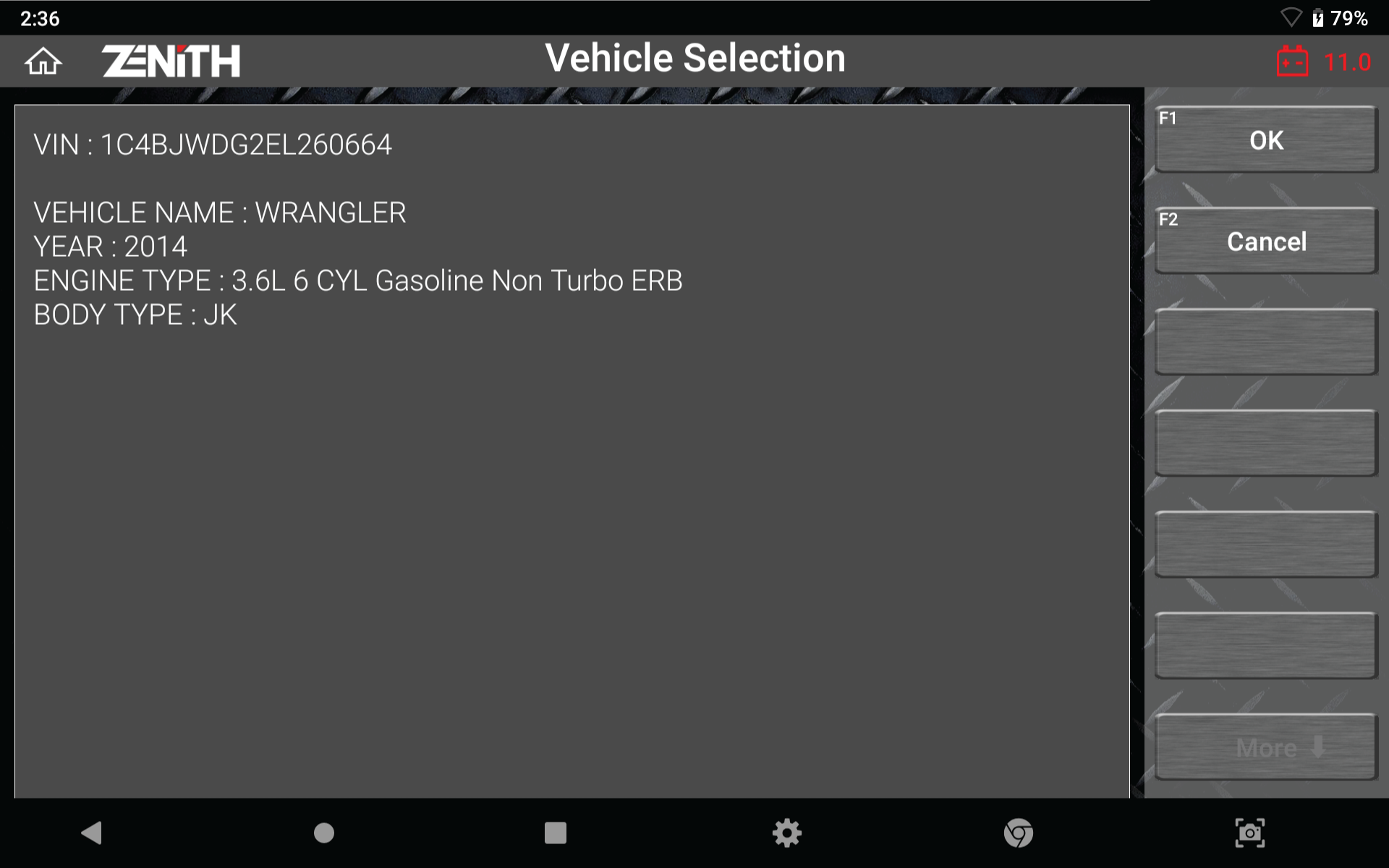

• Ultra Fast System Search
    Zenith offers ultra fast and auto system scan function that detects the VIN, model year, model name, engine type, and other necessary information that are retrieved.

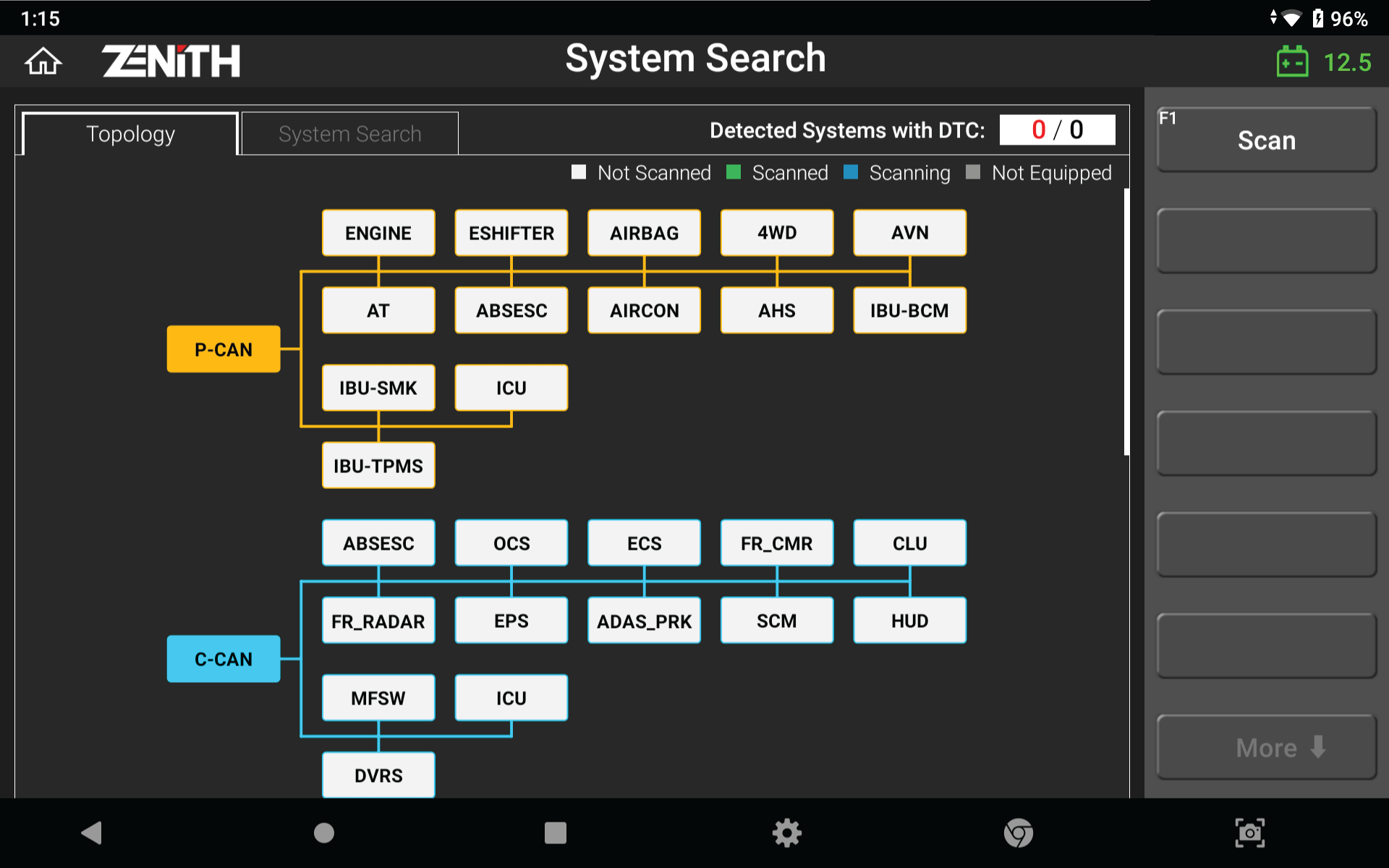

  • Topology Scan
    Zenith also offers ultra fast Topology scan function that scans all the vehicle systems, reports fault codes, and provides access to advanced diagnostic functions in each detected system.

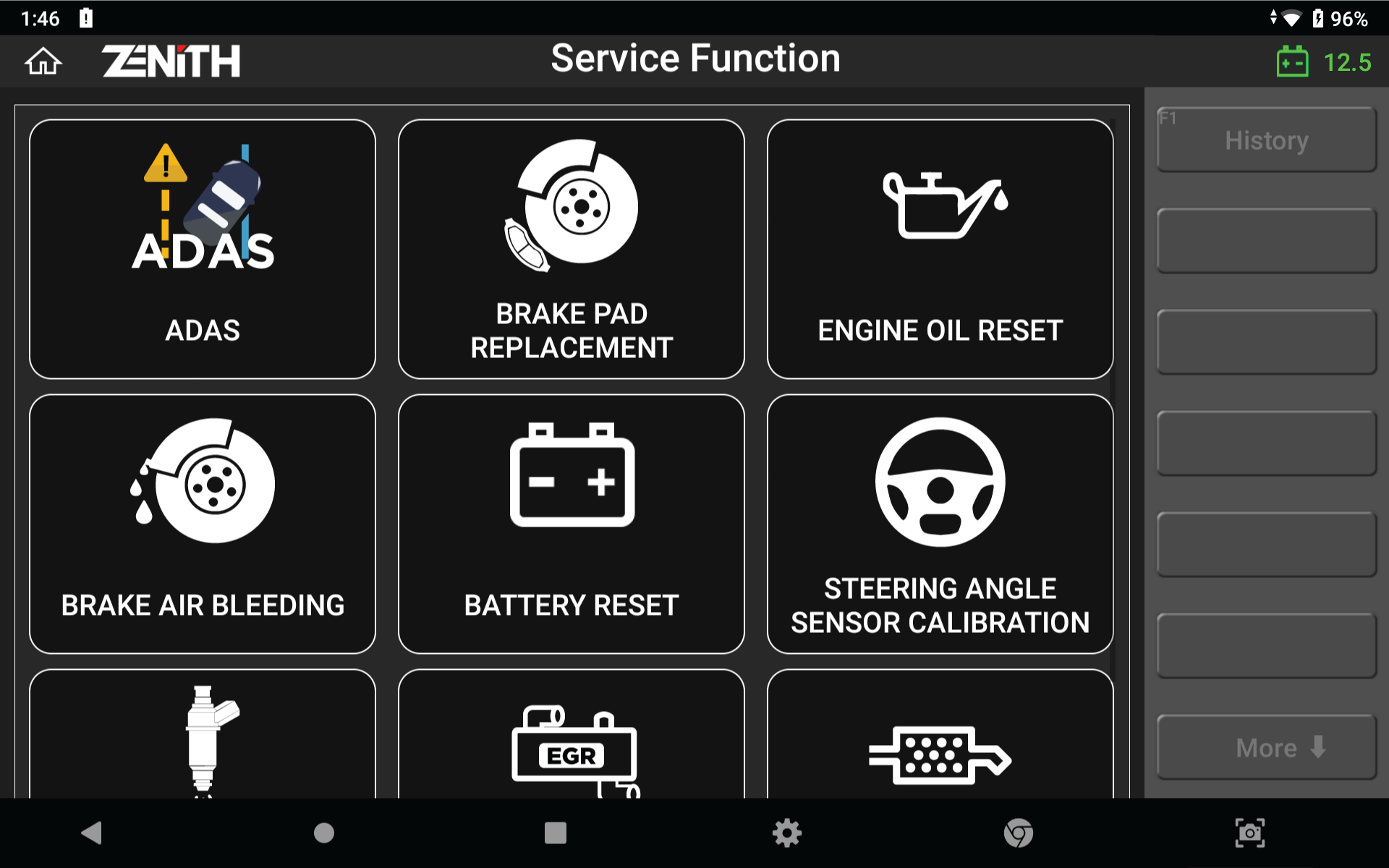

  • Service Function
    Time is money! Zenith offers shortcuts to the most frequently used functions in the workshops to save time for technicians to navigate through the original menu system.

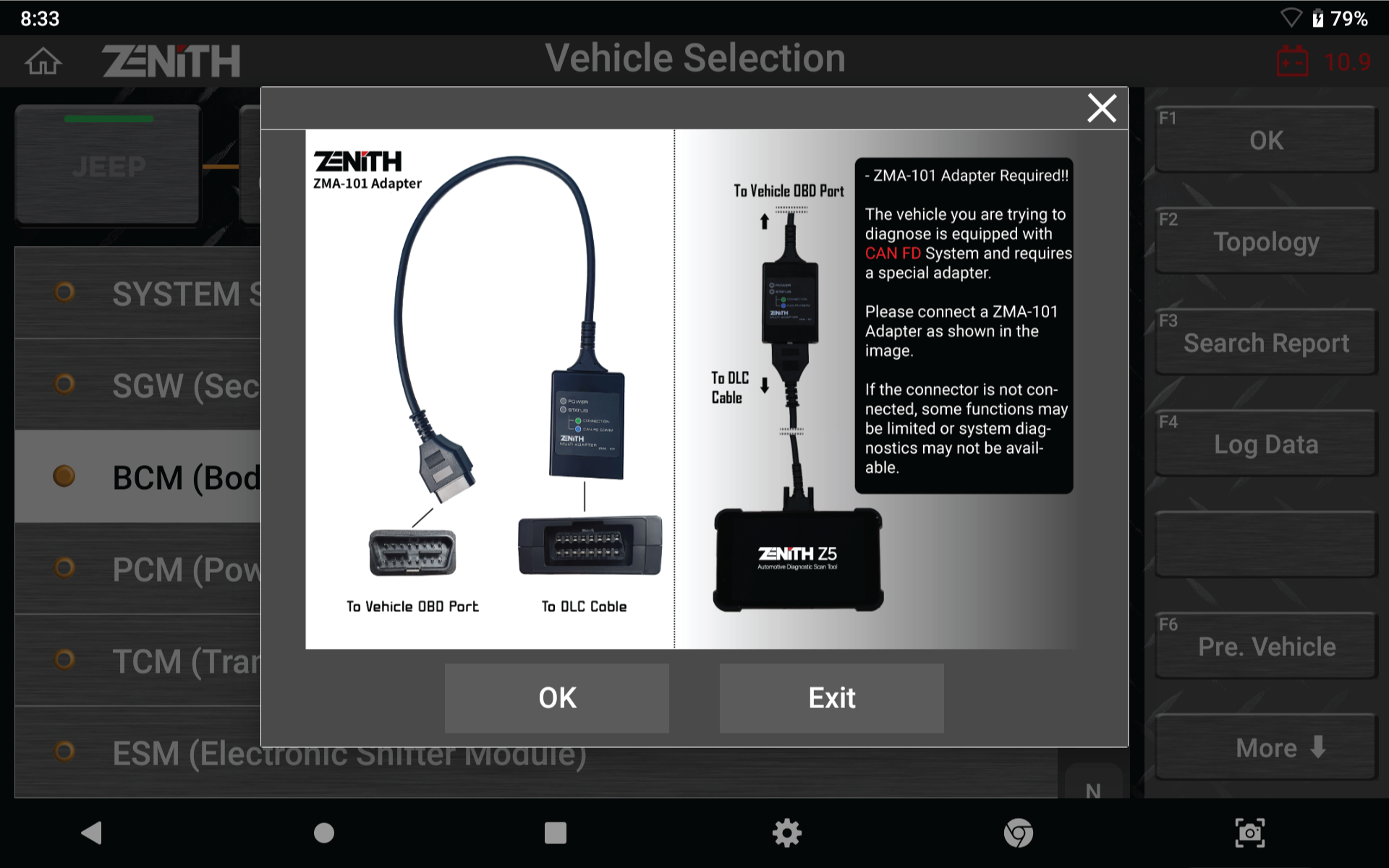

  • CAN FD & DoIP
    With our proprietary Zenith Multi Adapter, Zenith Z5 can diagnose vehicle models with CAN FD & DoIP protocol.

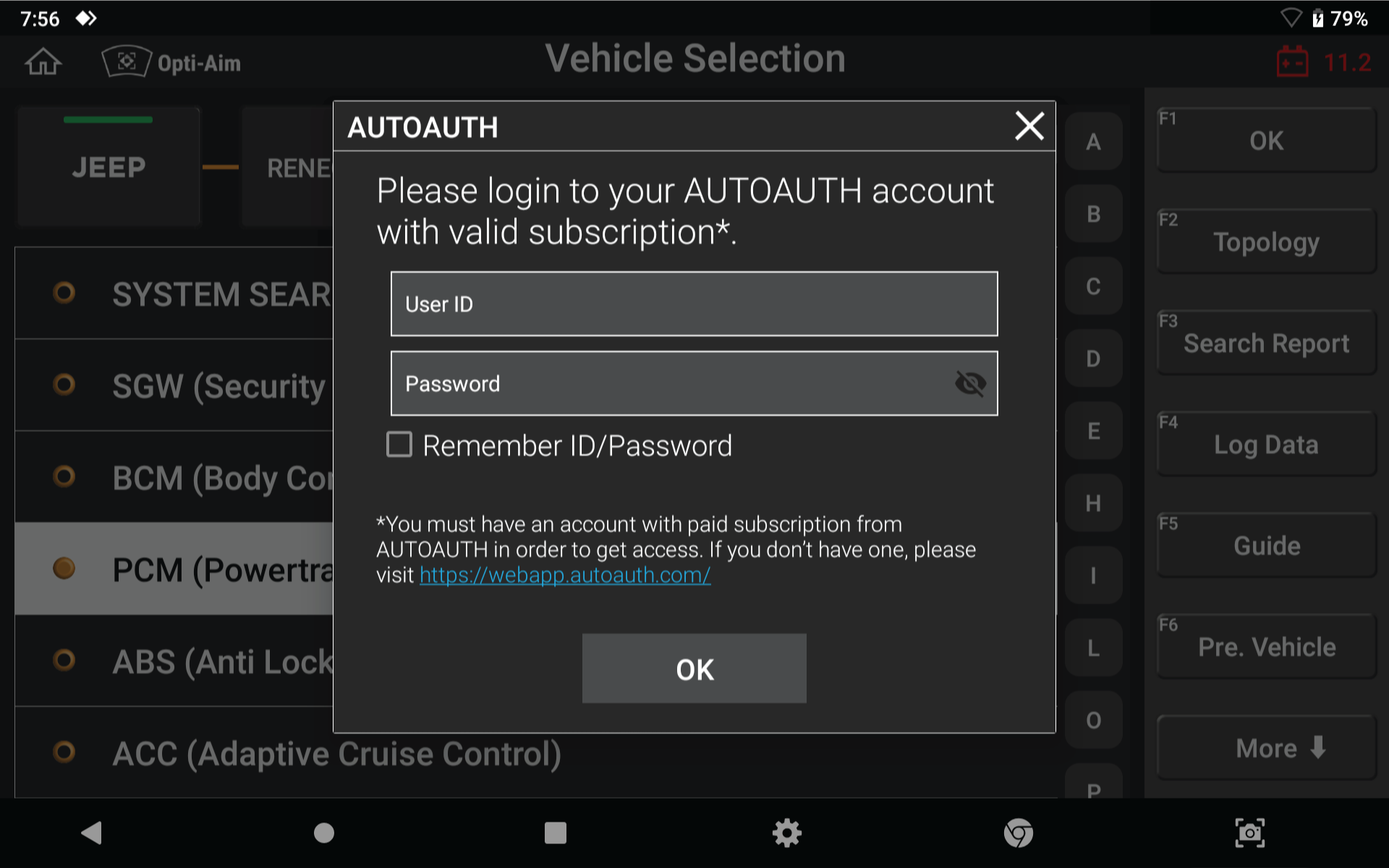

  • Security Gateway Ready
    Zenith offers Security Gateway Access for not only the latest Hyundai, Kia and Genesis models, but also Stellantis (FCA), and Nissan via AutoAuth. Zenith is also ready for Ford security functions as well.

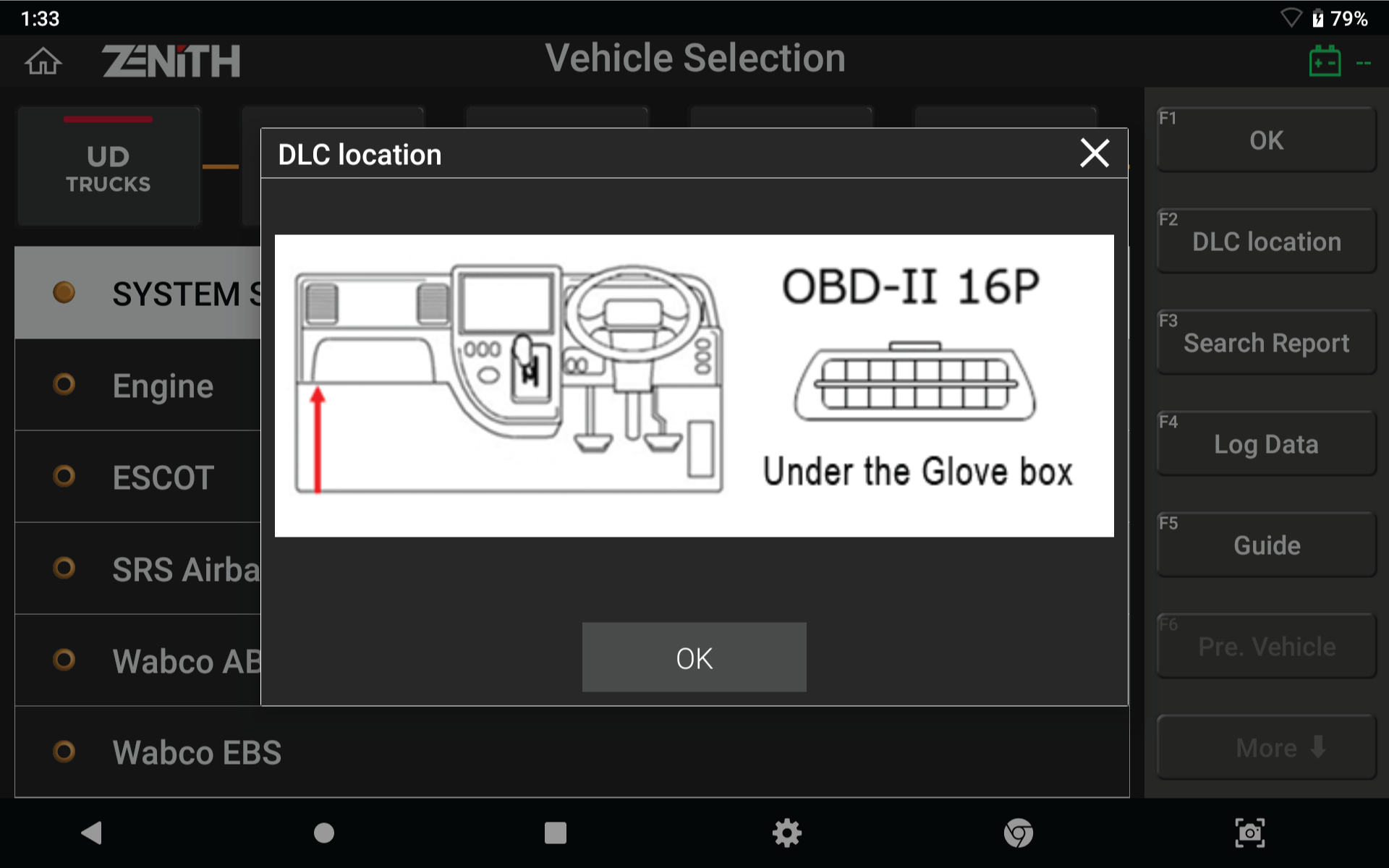

  • 24V Trucks
    Zenith supports bi-directional communications for Asian light duty to medium duty trucks with 24V system.

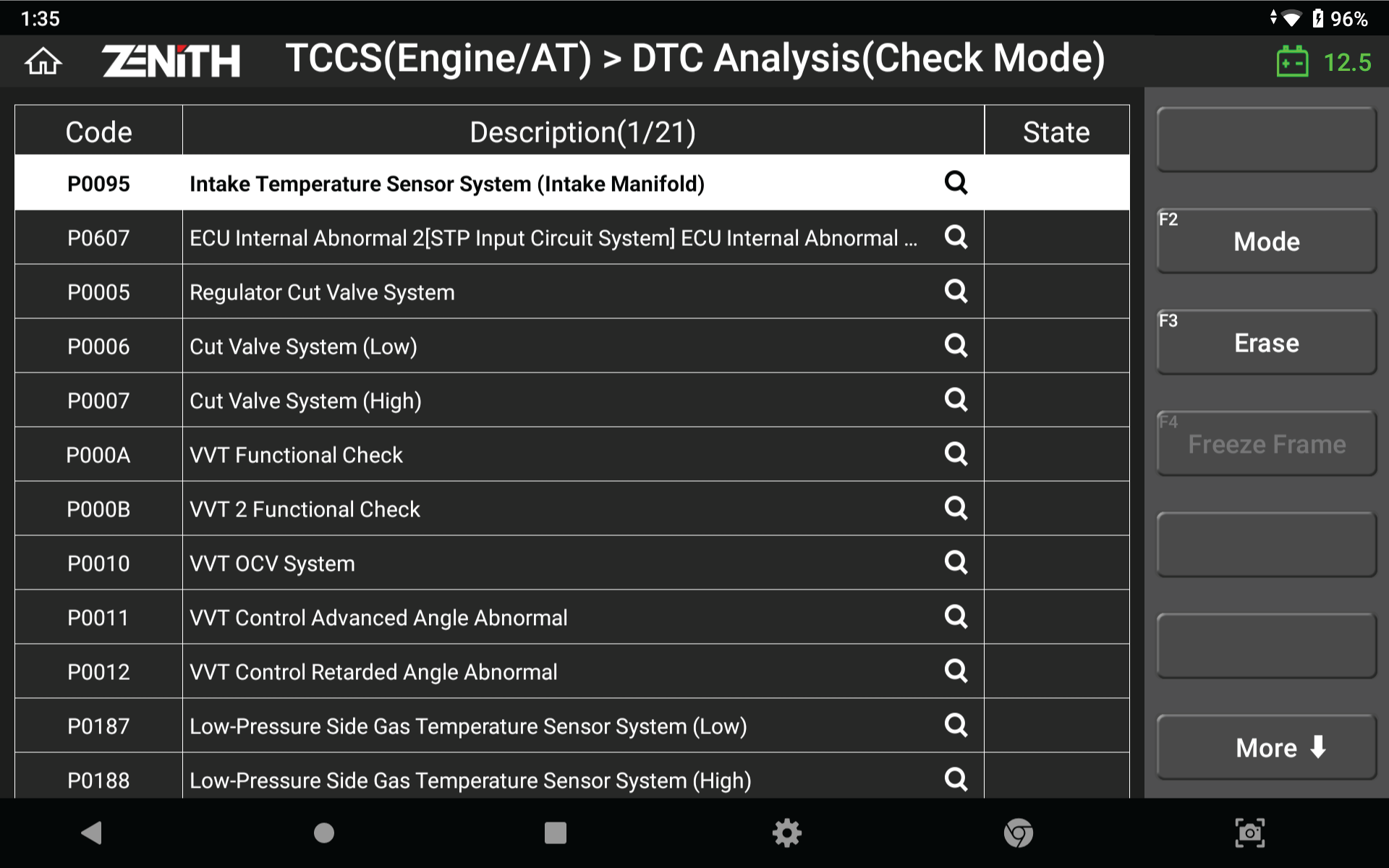

  • Full Text Description
    No more acronyms and cutting of significant texts. Zenith offers the long-text DTC description in full screen, so you get all the information you need. Zenith also allows users to view bigger texts by zooming in and out of DTC description with two fingers.

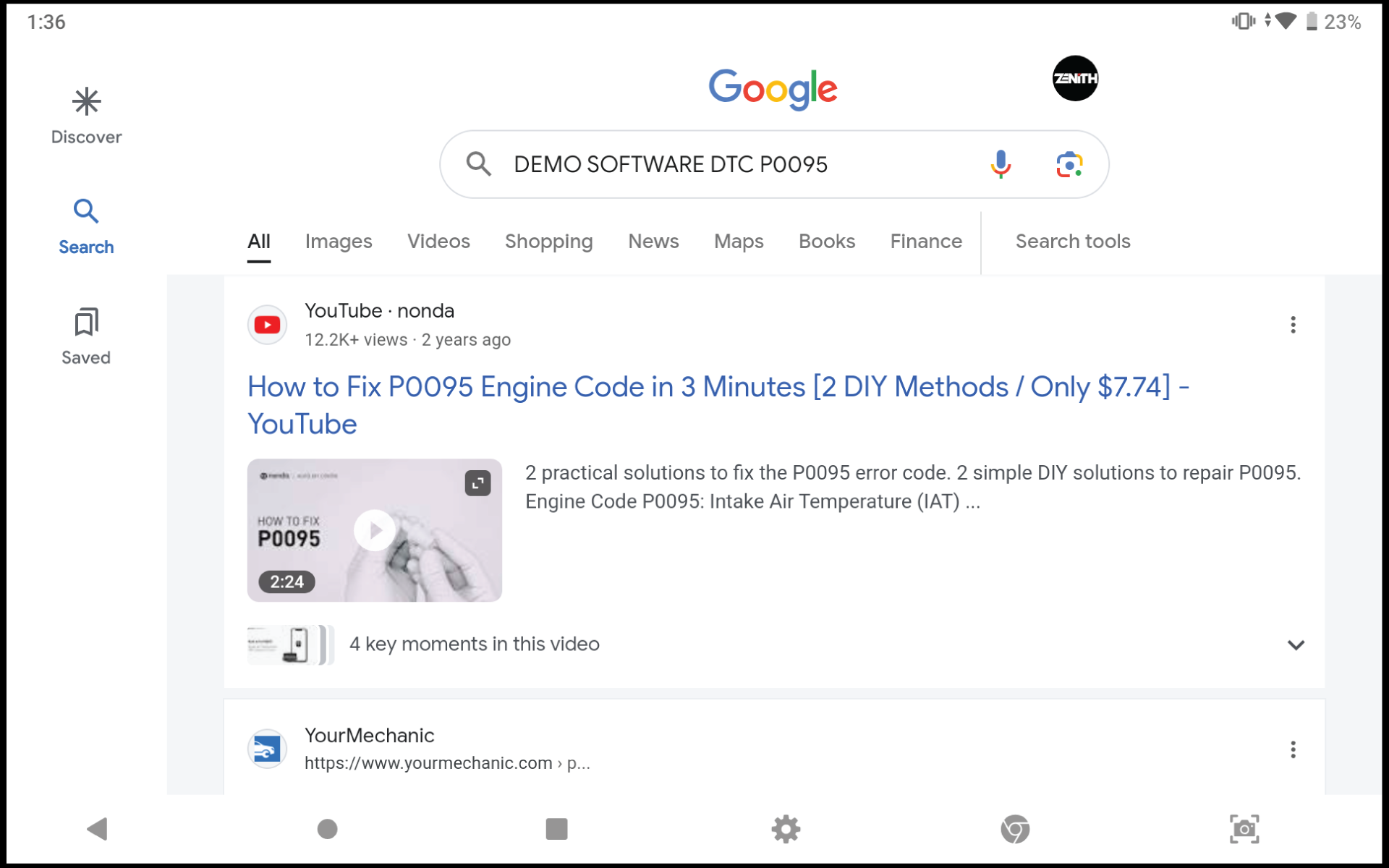

  • Search DTC
    No need to going back and forth to search the DTC on the web. Simply hit the magnifying button next to the description!

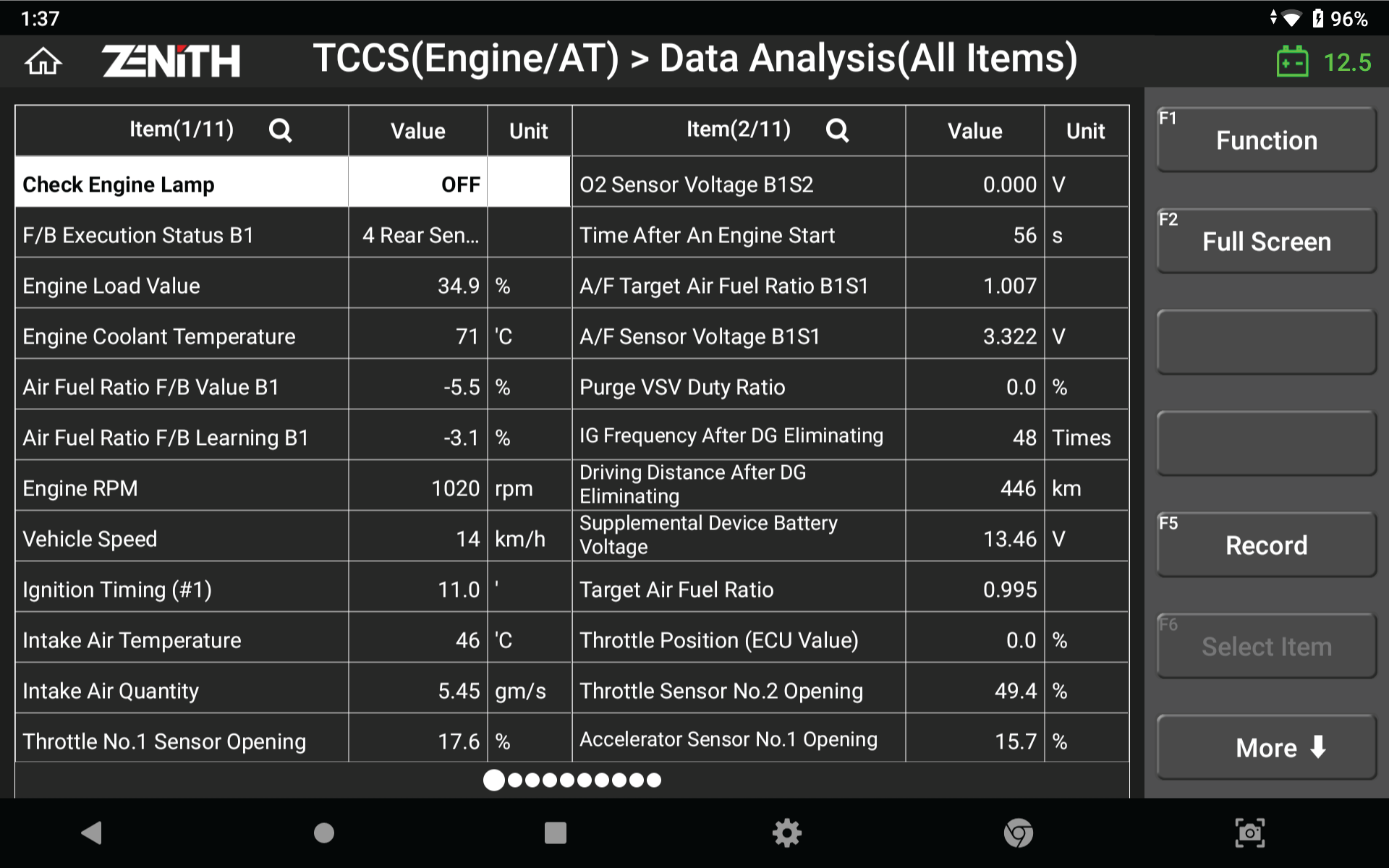

  • Live Data
    We understand that sensor data is important for professionals. Zenith offers intuitively designed and extremely fast Data Analysis where user can view/compare multiple live data with freedom of choice. Not only displaying multiple data in one screen, but Zenith also allows users to search and select desired items.

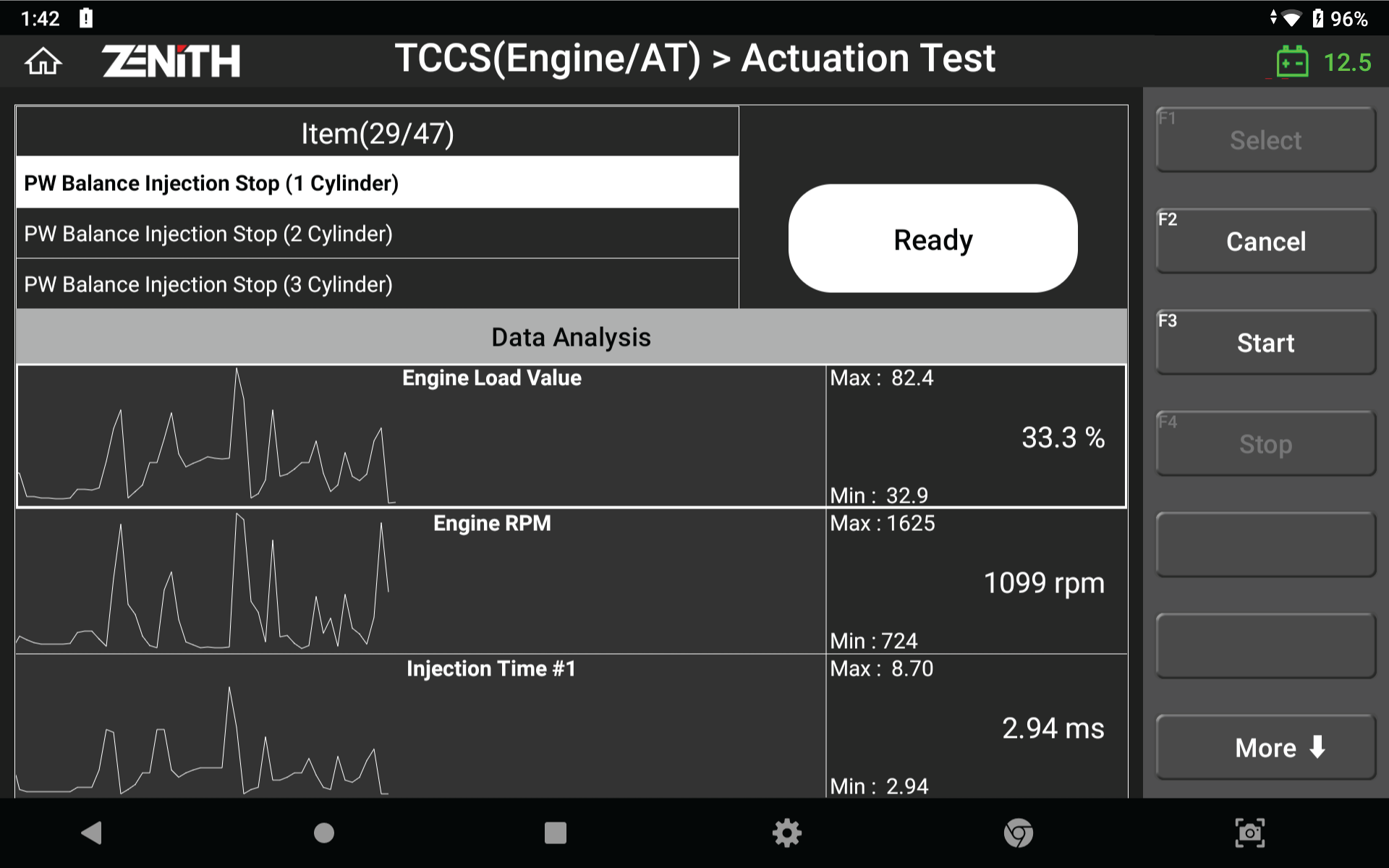

  • Actuation Test
    Zenith offers not just simple actuation test function. We go next step to combine live data and graphing in actuation test, so that user can check the performance of the testing component live!

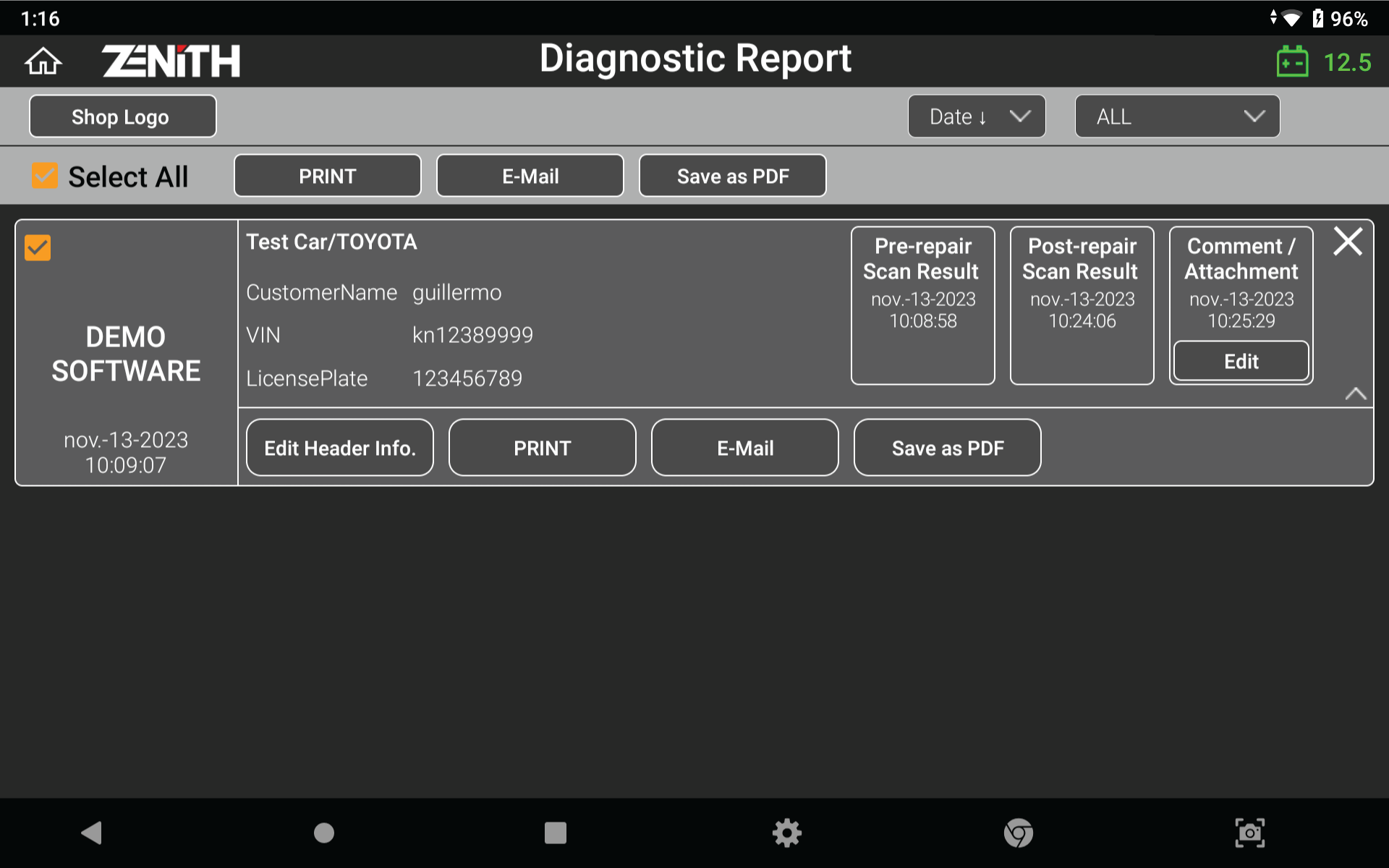

  • Pre & Post Diagnostic Report
    Zenith offers easy creation of diagnostic report with Pre-scan and Post-scan result. Not only user can save the reports as PDF file, also with the help of its robust network connectivity, user can print the report directly with a blue-tooth printer or send them to desired E-mail address.

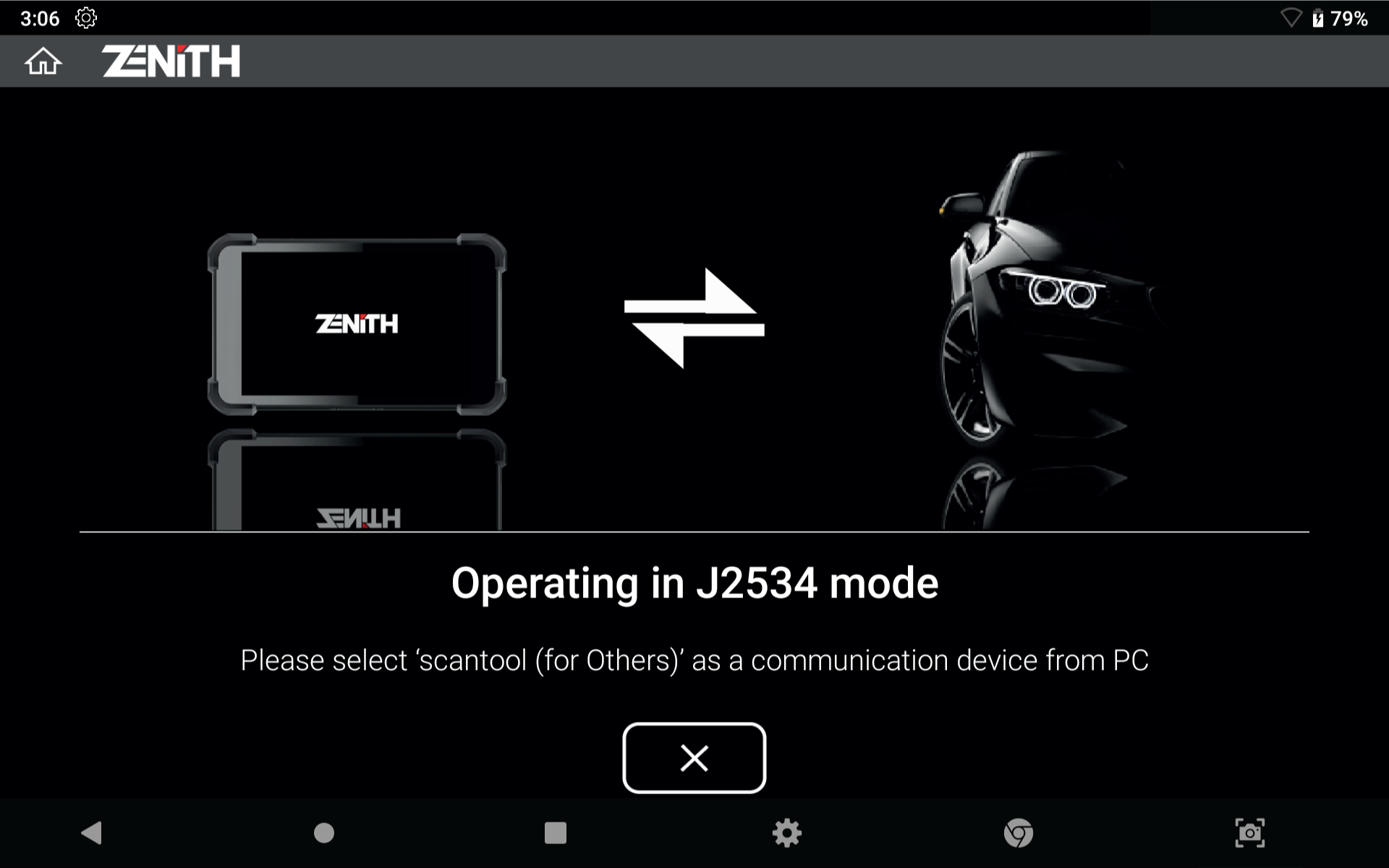

  • J2534 Pass-thru
    Zenith acts as a J2534 Pass-thru device for multiple car makes with CAN-Bus, KWP2000, and ISO9141 protocols, supporting J2534 programming and diagnostics.

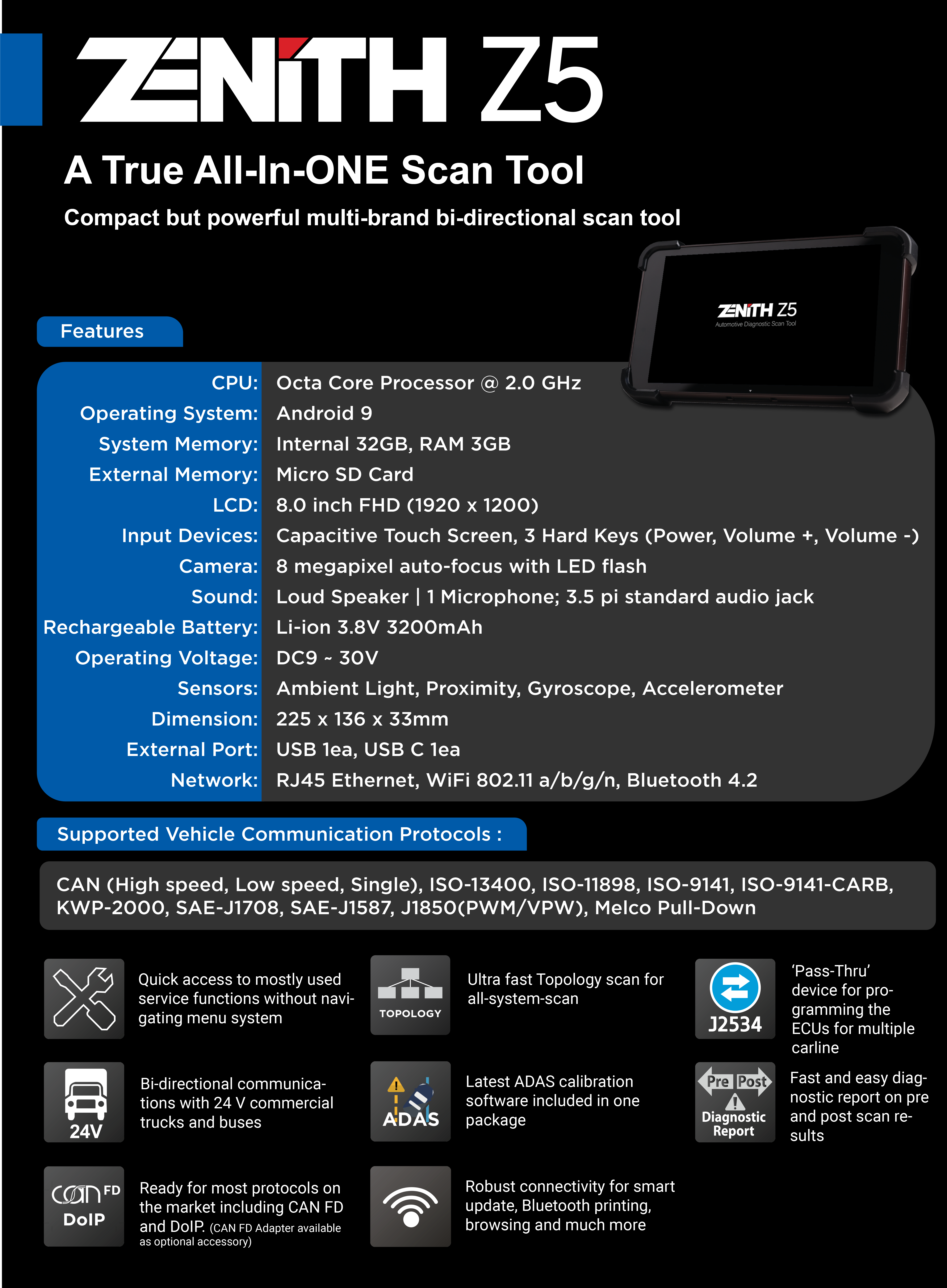

Product Brochure


Standard KIT

Zenith Z5 Main Body EZ5MU001 Base unit in Black
Main DLC Cable EZ5CB001 Main Cable for Zenith Z5
Battery to DC Cable EZ0CB003 Power Cable
Z5 Carrying Case EZ5BX005 Hard Carrying Case
Quick Manual Expendable Part Quick Manual in English
Z5 Battery EZ5BA001 Li-ion 3.8V 3200mAh
Z5 Stylus Pen EZ5AC003 Quick Manual in English
Z5 Stylus Pen String EZ5AC002
Z5 Rear Hand Strap EZ5AC001
J2534 USB Cable EZ5CB002
AC/DC Adapter EZ0CB001 AC/DC (KPL-060F) Adapter

Optional Accessories

Parts available as optional supply

Z5 Tempered Glass Protector EZ5AC004

Optional Adapters

Parts available as optional supply
